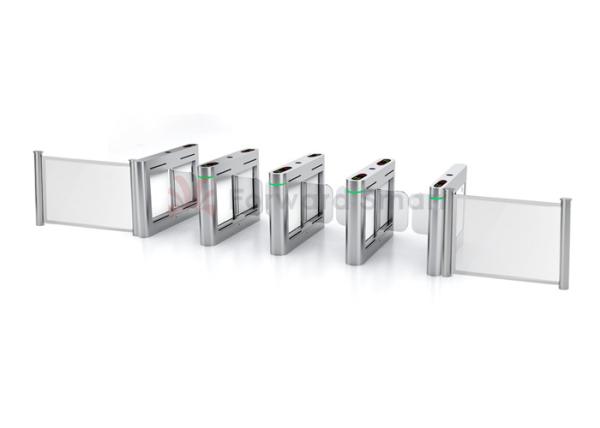

swing glass gate turnstile kuwait swing barrier gate supplier
Product Description
1.Swing arm anti-collision,you can even kick the swing arm,very
good quality.
2.Customer logo print on swing arm(optional,need more cost)
3.Box material:304 stainless steel(mirror effect material
optional,need more cost)
4.Pass speed:30-50 persons/minute
5.swing arm length:280mm
6.swing arm speed:0.4s-1s
7.support input way: Two-side card reading, paper ticket,
fingerprint, coins.
8.485 and TCP/IP communication port
9.workingtemperature:-15℃~+80℃
10.working humidity:≤95%
11.swing arm will close automatically when power off, open
automatically when power on.
12.Anti-follow:after passing one people,if someone follow,turnstile
will dead lock automatically and alarm
13.swing arm with light
14.voice prompt
FAQ Regarding turnstile:
1.What`s the difference between manual type turnstile and automatic
type turnstile?
A. Manual turnstile, it hasn't electric control device, Automatic
type, it can compatible with access control system.
B.Manual turnstile, it is single direction, For automatic type, it is
bi-direction,
2.What`s the difference between full auto turnstile and semi-auto
turnstile?
A.Full-auto type, it is motorized. For semi-auto, it is solenoid.
B. Full-auto type, after card reading, the arm will rotate 10-15
degree. Passengers push it to pass.
Semi-auto type, after card reading, passengers push the arm to pass.
C. Full Automatic turnstile, The Pole automatically falls down when electricity is
cut down, and the arm will be automatically when the power on.
Semi-auto turnstile, when power failure, the middle arm will drop automatically, and
when power on again, it needs people to lift it.
3.What`s the MOQ?
The MOQ of our tripod turnstile is 1 pc/pair
4.Whether the size and shape of turnstile can be changed?
OEM is available, we can produce the non-standard turnstile if customer offer
drawing or if customer need us to design a new turnstile.
| Specification |
| Power consumption | 100W |
| Housing Size | 1200*280*1000mm |
| Housing material | 1.5--2mm, 304# stainless steel, corosion resistant |
| Drive motor | DC brushless motor |
| Channel width | ≤1200mm |
| Pass speed | 30 persons or bike/min. |
| Panel open/close time | 1.5s(adjustable) |
| IP protection | IP44 |
| Input singal optional | DC12V/dry/contact/RS485/RS232/Remote) |
| railing-off against power off | Yes |
| Working enviroment temperature | minors 30°C to 70 °C |
| Working environments | indoor,outdoor |
| Relative humidity | ≤95% coagulation free |
| MCBF | 2,500,000 cycle |
