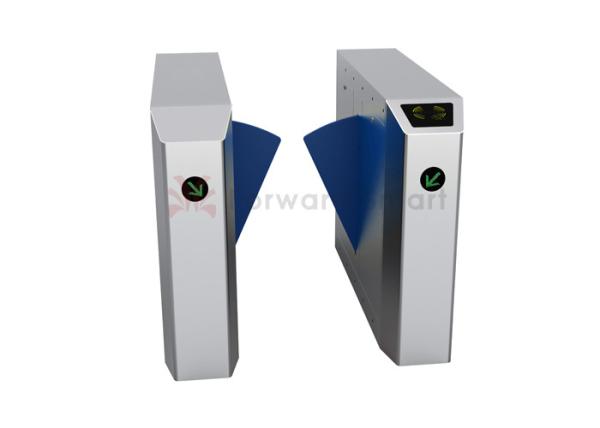

Door access control security turnstile made of 1.5mm 304 stainless
steel
Technical data
| Framework | 304 Grade Stainless Steel |
| Specification | 1200*298*1000(mm) |
| Weight | 80kg |
| Arm length | 600-900(mm) |
| Swing angle | 0-180 |
| Power voltage | AC220 (10%more or less) V,
50(10%more or less) HZ |
| Drive voltage | 24V |
| Interface | standard port-RS485 |
| LED indicating light | one |
| Card-reading window | two |
| Transit speed | 30—40persons per minute |
*Functions and Features:*
1. Unique incomplete wheel transmission is adopted to make
turnstiles held or unheld in zero position more accurate and
reliable.
2. Running stable, little noise and no mechanical impact
3. Self-checking-power-on function, if power on, turnstile will
auto get to be held.
4. Various working means can be set in the control panel menu,
namely: bi-direction card reading passing, or one direction card
reading passing and another passing limits, or one direction card
reading passing and another free passing, etc.
5. A. Full-auto type: If power off, arm will fall automatically
while power on later, arm will be automatically lift.
B. Semi-auto type: If power off, arm will fall automatically while
power on later, arm should be lift by hand. First press the arm
with a little force and then lift it manually.
6. It is with RS485 connection for far control arm up and down to
satisfy the special needs or fire control requirements.
7. It is with standard electrical interface to connect various
kinds of readers and writers for easy integration and also computer
far control and management can be realized by computer.
8. It will count the persons who have been passed through
automatically and will show the number by LED directly.(LED is
optional)
9. Passing direction will be shown by LED and passengers will know
which direction is allowed to pass.
10. Card reading memory or card reading without memory function can
be set in the control panel menu according to your request.
11. If working with software, the total-in-population can be set to
satisfy special request.
12. Re-position function. After card reading, if passenger not
through within the specific time, system will auto cancel passing
right for this time and the limit passing time length can be set.
13. Card Mounting is available.
14. Uncompleted wheel turning system is adopted for locking the
turnstile in zero, and unlocking will be more reliable and
accurate.
15. Optional:
1) Counter and counter display
2) Access controller or card reader
3) Key by-pass
Application:
Tripod turnstiles are mainly used in parks, subway, customers,
airport, bus station, office building, scenic spot, community,
attractions, and exhibition hall doors, residential, Construction
Sites, Industrial Plants, Marquee Golf Tournaments, State Fairs,
Special Sporting Events and Festivals!
