Home > Swing Turnstile Gate >

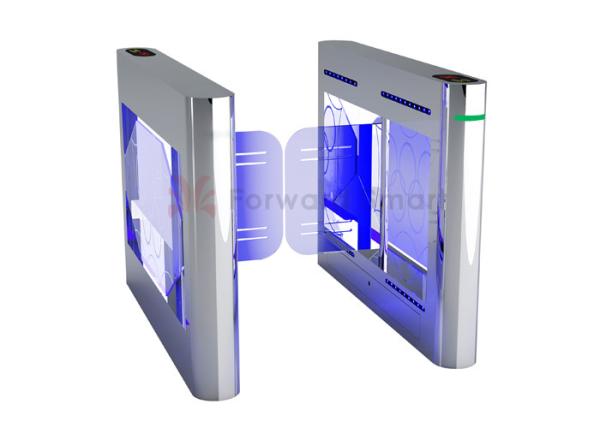

Supermarket Brushless Motor Rotary Swing Turnstile Gate

Product Categories

Shenzhen Forward Smart System Co,.Ltd

Contact Now

Supermarket Brushless Motor Rotary Swing Turnstile Gate

Ask Lasest Price
Brand Name :	FORWARD SMART
Model Number :	TB40
Supply Ability :	1000pieces per month
Price :	USD500-800pieces
Certification :	ISO9001:2015
Payment Terms :	T/T
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

Supermarket Brushless Motor Rotary Swing Turnstile Gate

High Quality Supermarket Manual Swing Tube Gate Rotary Turnstile FOR PROMOTION

Product Description

1.Features & Function

● Problem-self-checking function

●Many options of working ways: bi-direction card reading; one direction card reading and another no reading; one direction card reading and another freely

●When power off, arm open automatically and power on again, arm will be held automatically.

●When valid card read, just push the arm with little force and arm will turn. After passenger passing, arm will be held automatically. Three arms are always closed with each turning 120 degrees.

●Unique wheeling system is adopted to ensure accurate zero holding and unholding.

●Standard interface is convenient for connection with different readers and writers.

●Auto-reposition function: After card read, passenger not pass within regulated time period, full-height turnstile will cancel this passing right. And the regulated time period for passing can be set by managers.

●Stable running with little noise.

2.Technical Parameters:

Model No	TR01
Cabinet material	304 Staintless Steel
Passage width	550mm-600mm
Pass speed	over 30 persons/min
Power supply	220~240 V(AC)
Max power consumption	60w
Frequency	50~60 mhz
Pass speed	30people/min
Mechanism	Electromagnetic
IP Protection	IP54
Working temperature	-35~+70 °C
Working environments	indoor /outdoor

Packing & Delivery

*Package for tripod turnstile : Honycomb Board Box or Plywood Board

*Shipping for tripod turnstile By air: DHL,Fedex,UPS,TNT,EMS or by sea

Delivery:5-15 working days

Company Profile

Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system and some traffic accessories.

Most of products from WQH has acquired CE certificate. and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Euorpe, Africa, South America.

In order to provide our customer better service, we have established agent sites in Sri Lanka and Thailand.More distributors are need to expand our marketing share and gain win-win outcome.

Welcome to inquire us any time
