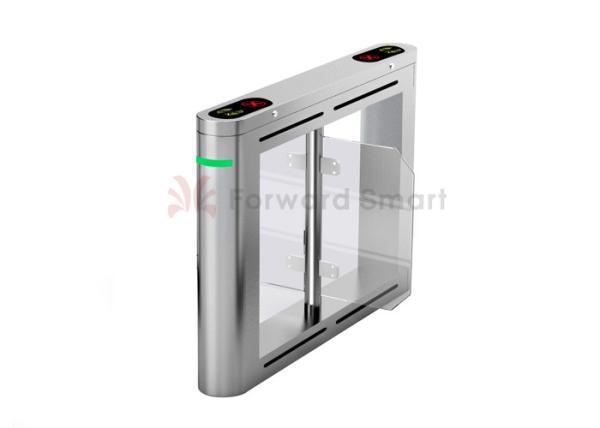

TCP/IP 304 Stainless Steel Integrated RFID Turnstile Gate

RFID Turnstile Gate Equipped with Integrated Access Control

Product Description

Features of Turnstile Gate:

>>Mechanical drive unit eliminate the use of expensive electric motor and reduce maintenance cost. Lock mechanism is based on heavy duty solenoid to ensure longer life time and lesser maintenance.

>>Turnstile can be configured to be bi-directional or uni-directional. Built in acrylic plate for easy integration with other devices.

>>If arm rotate more than half, It will auto-rotate to the next idle position If arm rotated less than half, it will auto-rotate back to the current idle position. Built in adjustable tension spring to control auto-rotate force of arm and minimize auto-rotation.

>>DC operation, built in circuit breaker to protect against mild electric surge.

>>Anti-tailgating. Smart lock mechanism uses limit switch to detect rotation and effectively re-lock back after 1 person pass through. Also support time delay 5 sec, 10 sec, 15 sec and 60 sec.

>>During power failure, arm will drop automatically allowing free pass through. Internal parts inside the housing are locked via a key to avoid tampering.

>>Built in LED display on top cover to indicate approved access direction. Once unlock, arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

>>Additional LED display at both leg to indicate if turnstile is available for usage (green arrow) or closed for maintenance (red cross).

Technical Parameters:

Model No	TS-06
Cabinet material	304 Stainless Steel
Passage width	550mm-600mm
Pass speed	over 30 persons/min
Power supply	220~240 V(AC)
Max power consumption	30w
Frequency	50~60 mhz
Encounter	available
Mechanism	Electromagnetic
IP Protection	IP54
Working temperature	-35~+70 °C
Working environments	indoor /outdoor
