Bidirectional Long Range Reader Big IC/ID Swing Turnstile Gate

Ask Lasest Price
Brand Name :	FORWARD SMART
Model Number :	TB42
Supply Ability :	1000pieces per month
Price :	USD500-800pieces
Certification :	ISO9001:2015
Payment Terms :	T/T
Delivery Time :	5-8 working days

Add to Cart

Product Details
Company Profile

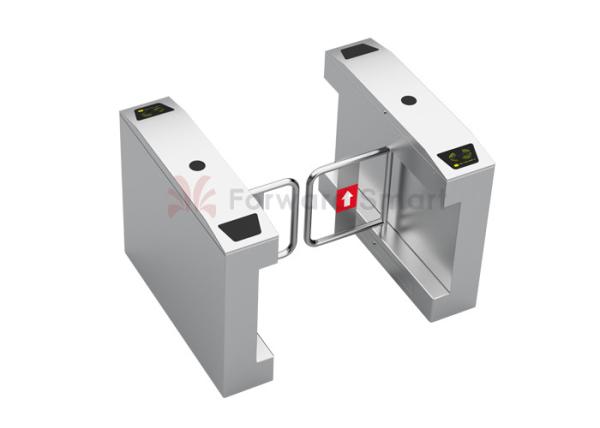

Bidirectional Long Range Reader Big IC/ID Swing Turnstile Gate

Big Turnstile Gate with Long Range reader for South Africa Market

Product Description

1. Features of Full Height Turnstile:

● INTEGRATED ACCESS CONTROL BOARD

Maintains all access operations and integrates the turstile controls with a wide variety of card readers and other auxiliary systems for reliable access control.

●SELF-CENTERING MECHANISM

For longer service life and higher user satisfaction, it centers the rotor smoothly without any stagger through built-in hydrolic shock absorber mechanism.

●WELDED MONOBLOCK CONSTRUCTION

Long service life with minimum wear and tear thanks to welded monoblock construction that replaces boltsand-nuts.

●OVERRIDE CAPABILITY

Configurable turn direction overrides the current rotation setting for versatile user-defined access control.

●HORIZONTALLY REMOVABLE TOP COVER

Horizontally removable stainless steel top mechanism cover, providing easy service with minimum overhead clearance.

●NARROW TURNSTILE CLEARANCE

Four-armed turnstile design provides minimal room for each user, making piggybacking almost impossible for reliable access control.

●COMPLEMENTARY MIX

You can mix and match your full height turnstiles with other turnstile models, like pedestrian security gates for example to allow cargo access.

2.Technical Parameters:

Product name	Full height turnstile
Model	WQH-TR03
Housing Material	202or304 grade stainless steel
Housing Size	1630x1500x2300mm
Passing speed	30 person/min
Working Voltage	AC220V±10V,50HZ
Net Weight	200 kg
Gross Weight	215kg
Motor voltage	220v
Rated Power	80W
Control type	IC/ID/Barcode control
accepted Transmission	sine linkage
Boom length	≤700 mm
Frequency	50~60Hz
Logic voltage	24v
Working mode	one directional or bi-directional optional
Operating humidity	≤90% non-condensing
Communication Interface	RS485/RS232
Operation life	≥5 million times

Applications

●Stadiums

●Airports

●Offices

●Universities

●Manufacturing facilities

●Warehouses

●Hotels

●Transit stations

●Amusement parks

Company Profile

Our main comprehensive product lines include: Tripod turnstile, swing barrier, flap barrier, barrier gate, vehicle parking management system, parking guidance system and some traffic accessories.

Most of products from WQH has acquired CE certificate. and our factory also gained ISO9001 Quality certificate. Our main markets are South-East Asia, South Asia, Middle East, Euorpe, Africa, South America.

In order to provide our customer better service, we have established agent sites in Sri Lanka and Thailand.More distributors are need to expand our marketing share and gain win-win outcome.
